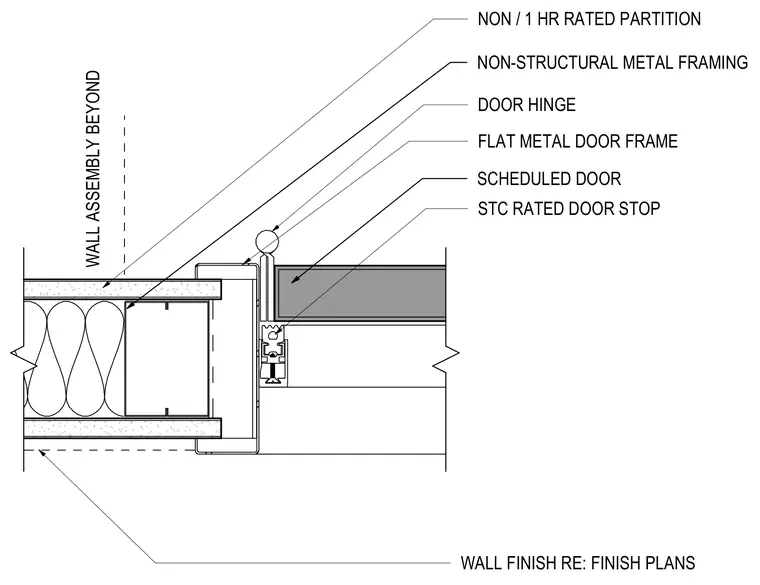

This hollow metal door jamb detail shows a flat metal door frame set within a one-hour rated non-structural metal framing partition wall assembly. The wall beyond features metal studs with sound insulation and gypsum board finishes scheduled per finish plans. A scheduled door hangs from a door hinge attached to the frame. An STC-rated door stop with acoustic seals completes the frame assembly to maintain the targeted sound transmission class rating.
NON-STRUCTURAL METAL FRAMING NON / 1 HR RATED PARTITION WALL FINISH RE: FINISH PLANS SCHEDULED DOOR WALL ASSEMBLY BEYOND DOOR HINGE STC RATED DOOR STOP FLAT METAL DOOR FRAME
