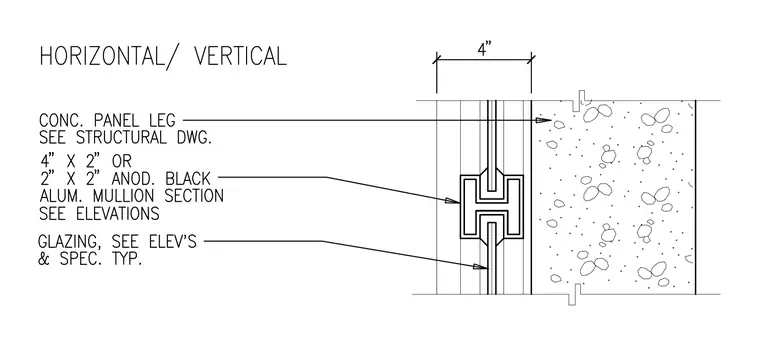

A four-inch by two-inch or two-inch by two-inch anodized black aluminum mullion section connects horizontally and vertically adjacent to a concrete panel leg. Glazing details and specifications are coordinated per the architectural elevations and typical specifications. The concrete panel leg is detailed per structural drawings with a four-inch dimension callout.
