Structural · A-D4MG6

Precast Concrete Wall Panel Corner and Section Details

Elements

About this detail

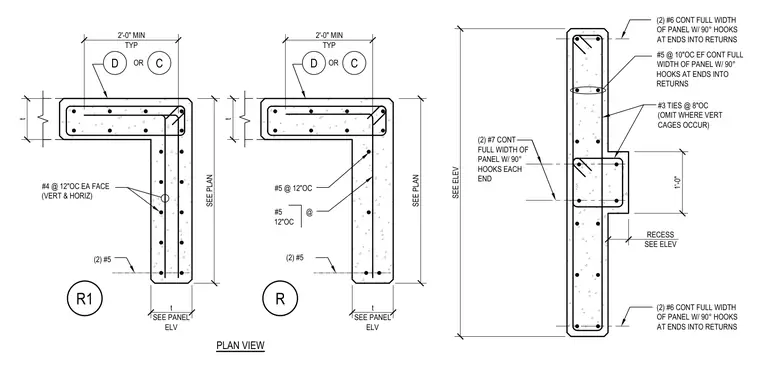

Precast concrete wall panels feature continuous reinforcing bars with ninety-degree hooks at ends into returns, number four bars spaced at twelve inches on center on each face vertically and horizontally, and number five bars positioned per plan. The vertical section includes two number seven continuous bars across the full width of the panel with ninety-degree hooks at each end, number five bars spaced at ten inches on center each face, and number three ties spaced at eight inches on center, omitted where vertical cages occur. A one-foot-wide recess is detailed with dimensions referenced to the panel elevation.
