A-D4BA6 — Guard Post Gp

Architectural · A-D4BA6

Guard Post Gp

Scale: SCALE: 1" = 1'-0"
Units: imperial
Sheet: A504
Discipline: Architectural

Materials

Elements

Anchors / Embeds Columns Connections / Plates Floors / Slabs Railings / Guards

Connections

Base Plate / Anchorage Welded Connection

Text on the drawing

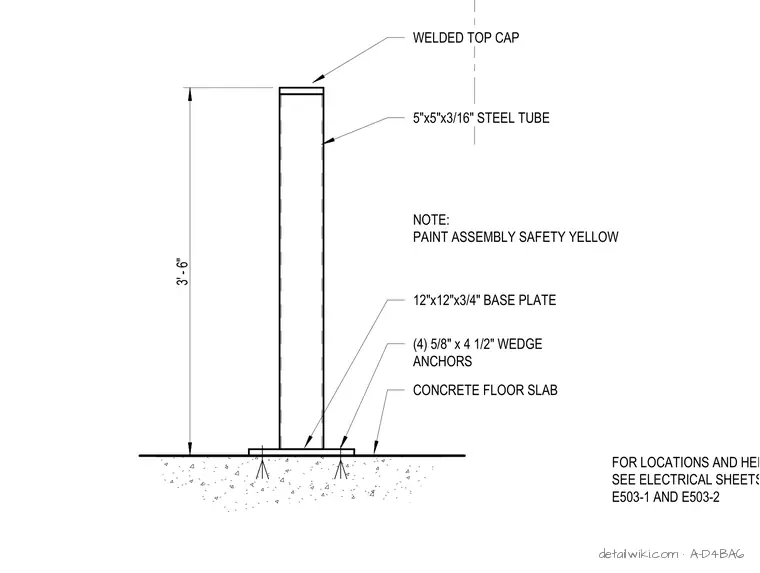

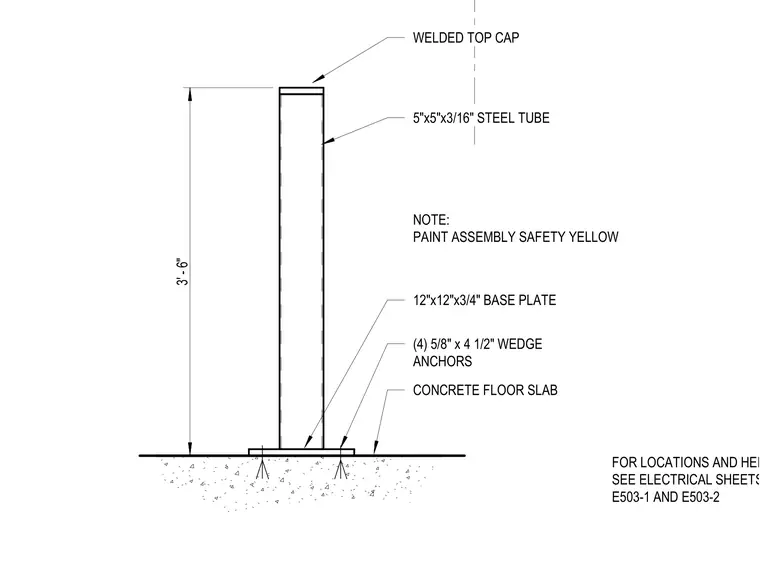

5"x5"x3/16" STEEL TUBE 12"x12"x3/4" BASE PLATE (4) 5/8" x 4 1/2" WEDGE ANCHORS WELDED TOP CAP NOTE: PAINT ASSEMBLY SAFETY YELLOW CONCRETE FLOOR SLAB 3' - 6" FOR LOCATIONS AND HEIGHTS, SEE ELECTRICAL SHEETS E503-1 AND E503-2
