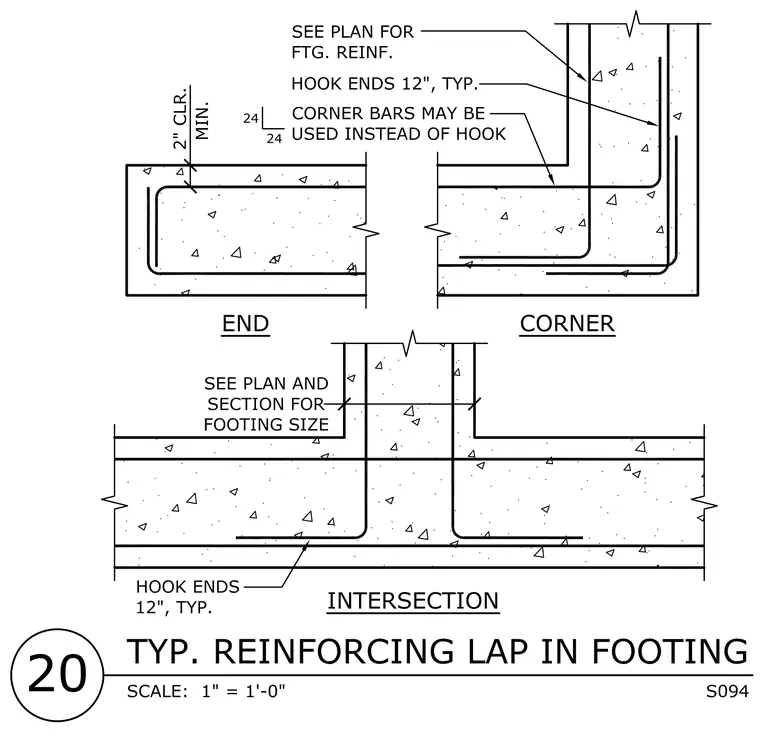

Footing reinforcement requires a minimum two-inch concrete clearance for durability. Longitudinal reinforcing bars feature twelve-inch hook ends typically, with twenty-four by twenty-four-inch corner bars used alternatively at corners. Footing sizes and footing reinforcement are sized per plan and section. Hook ends are applied typically at intersecting wall footings.
