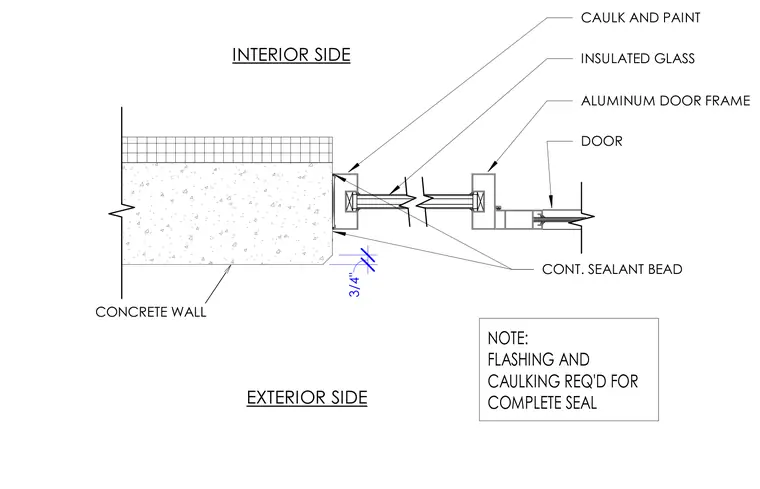

An aluminum door frame is anchored against a concrete wall opening, secured with a continuous sealant bead at the exterior and interior interfaces. The frame receives an insulated glass unit and a door panel, finished with caulking and paint at the wall connection. Flashing and caulking are required along the junction to maintain a complete weather seal.
NOTE: FLASHING AND CAULKING REQ'D FOR COMPLETE SEAL DOOR INSULATED GLASS INTERIOR SIDE EXTERIOR SIDE CONCRETE WALL ALUMINUM DOOR FRAME CAULK AND PAINT CONT. SEALANT BEAD 3/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
