Architectural · A-D43BR

Glass Guardrail and Handrail Detail at Stair Landing

Materials

Steel Stainless Steel Glass / Glazing

Elements

Columns Stairs Railings / Guards Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

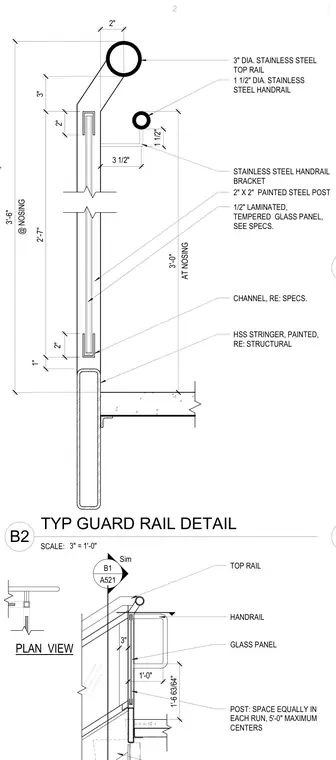

This stair guardrail detail features a three-inch diameter stainless steel top rail and a one-and-a-half-inch diameter stainless steel handrail supported by stainless steel brackets. The infill consists of a one-half-inch laminated and tempered glass panel secured at the top and bottom in U-shape bent plate steel channels. Two-by-two-inch painted steel posts support the assembly and are spaced equally along each run at a maximum of five feet on center. The posts fasten to a painted hollow structural section stringer and channel detailed per structural drawings at the intermediate landing.
