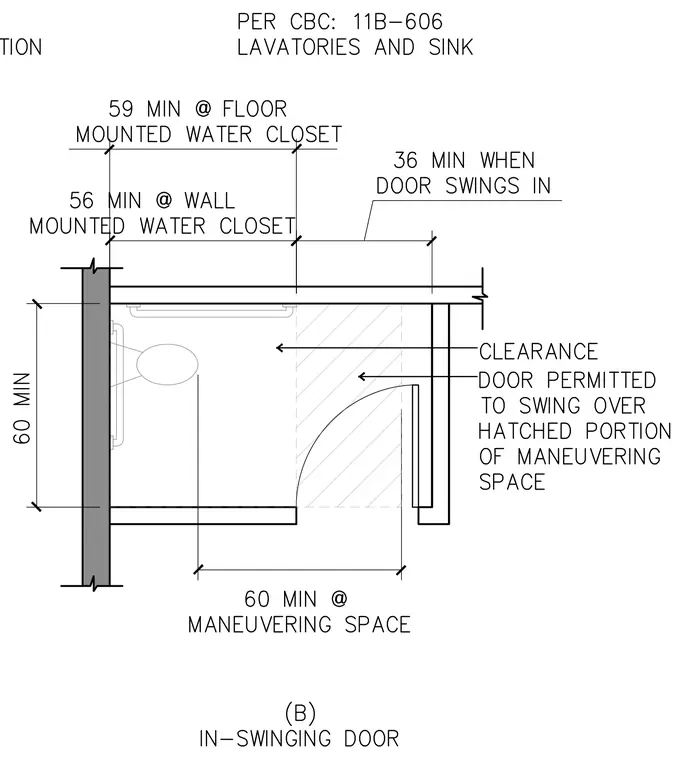

This accessibility detail outlines the required clear floor spaces and maneuvering clearances for a toilet stall featuring an in-swinging door. The plan shows a sixty-inch minimum maneuvering space dimension with fifty-nine-inch minimum at floor-mounted water closets and fifty-six-inch minimum at wall-mounted water closets. A thirty-six-inch minimum clearance is required when the door swings in. The door is permitted to swing over the hatched portion of the required maneuvering space.
