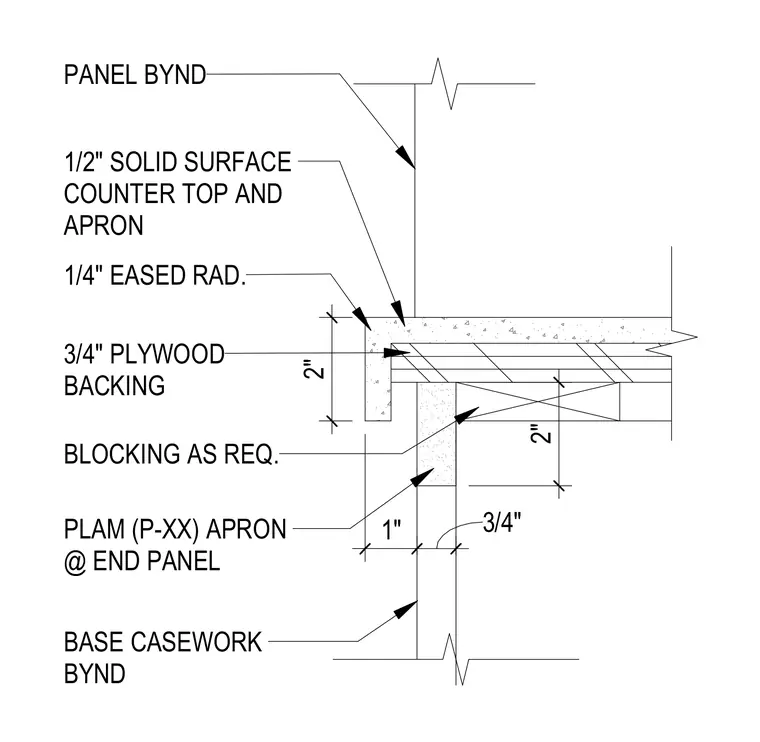

One-half-inch solid surface countertop features an integrated apron and a one-quarter-inch eased radius at the leading edge. The solid surface material is supported by three-quarter-inch plywood backing over wood blocking as required. A plastic laminate apron finishes the end panel of the base casework situated below.
2" 1" 3/4" 2" PANEL BYND 1/2" SOLID SURFACE COUNTER TOP AND APRON 1/4" EASED RAD. 3/4" PLYWOOD BACKING BLOCKING AS REQ. PLAM (P-XX) APRON @ END PANEL BASE CASEWORK BYND
