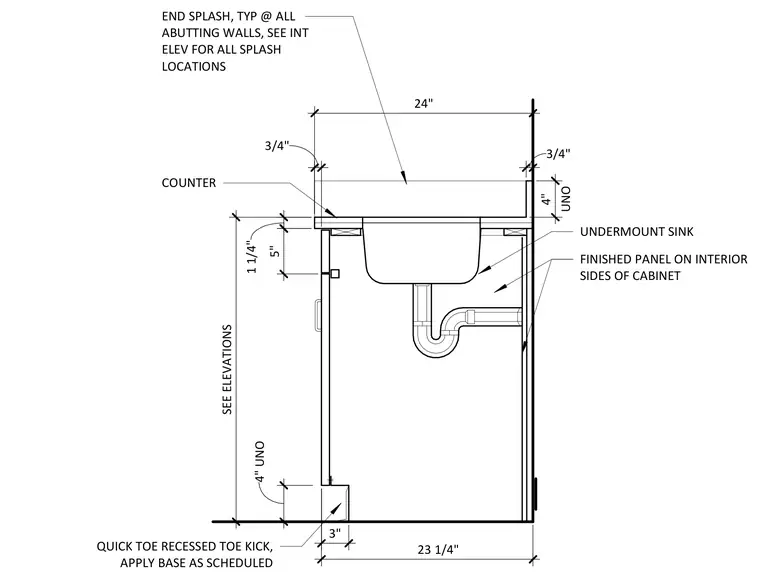

This casework section detail shows a base cabinet assembly with a 24-inch countertop depth and an undermount sink installed below. The cabinet features a four-inch end splash at abutting walls and a recessed quick toe kick measuring three inches deep by four inches high at the base, where a finish base is applied per the schedule. Interior sides of the cabinet receive finished panels unless noted otherwise, and plumbing connections include a standard P-trap configuration beneath the sink basin.
END SPLASH, TYP @ ALL ABUTTING WALLS, SEE INT ELEV FOR ALL SPLASH LOCATIONS 3/4" 3/4" 1 1/4" 5" SEE ELEVATIONS 23 1/4" 3" 4" UNO COUNTER UNDERMOUNT SINK 24" QUICK TOE RECESSED TOE KICK, APPLY BASE AS SCHEDULED FINISHED PANEL ON INTERIOR SIDES OF CABINET UNO 4"
