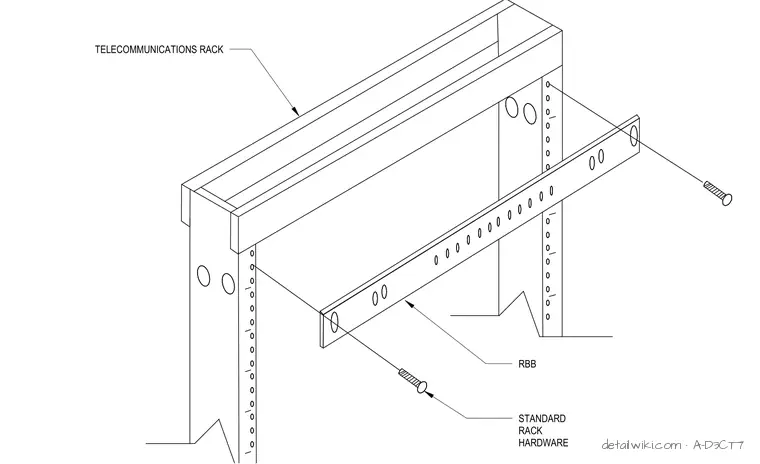

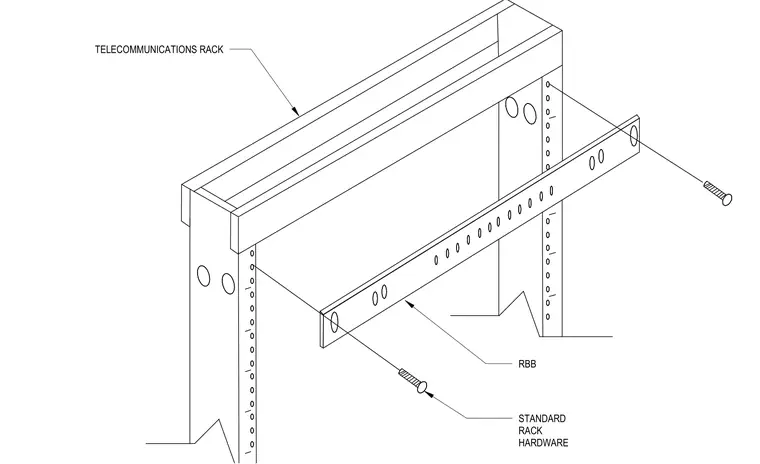

A rack-mounted ground bar attaches to a telecommunications rack. The telecommunications rack provides structural support for the copper ground bar, which is secured using standard rack hardware and machine bolts. The ground bar features multiple pre-drilled attachment holes for grounding connections.
