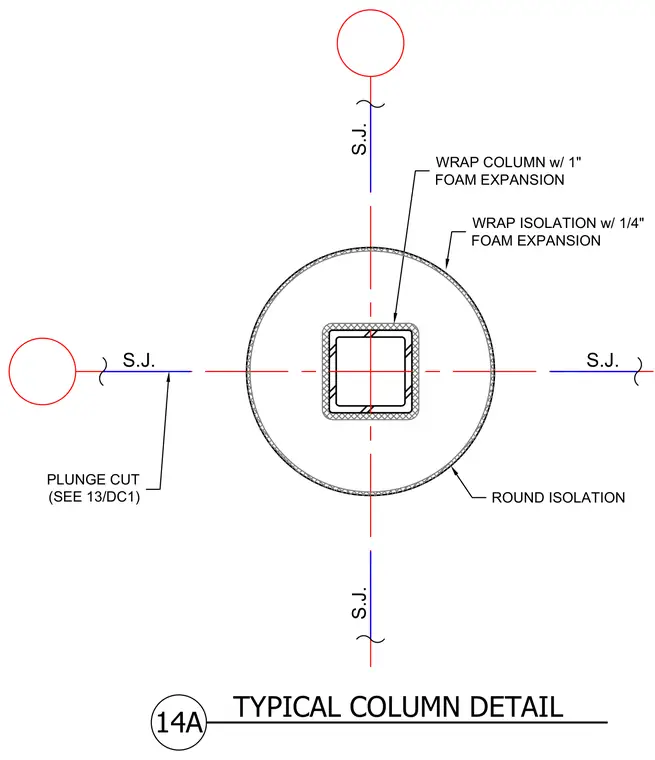

A square structural column is wrapped in a 1-inch foam expansion layer, enclosed within a round isolation wrap featuring a 1/4-inch foam expansion joint. Radial lines indicate control joints or expansion joints extending outward from the column assembly. Plunge cuts are detailed per reference 13/DC1.
S.J. S.J. S.J. S.J. WRAP COLUMN w/ 1" FOAM EXPANSION PLUNGE CUT (SEE 13/DC1) TYPICAL COLUMN DETAIL 14A ROUND ISOLATION WRAP ISOLATION w/ 1/4" FOAM EXPANSION
