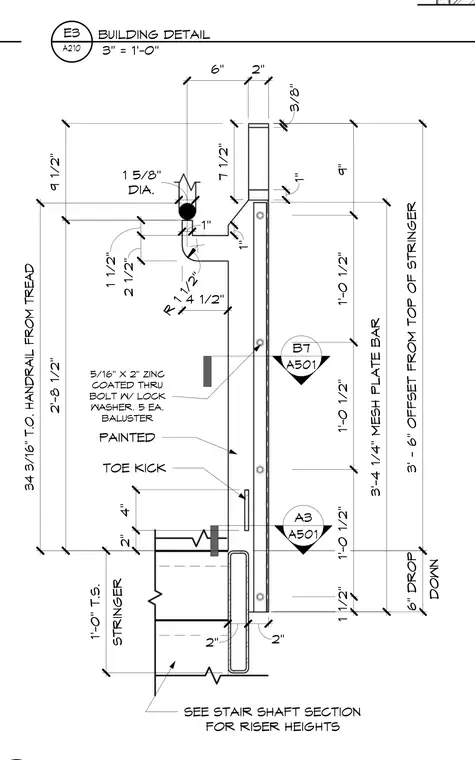

A painted handrail and mesh plate bar guardrail assembly is secured above a structural steel tube stringer with a three-foot-six-inch offset. The handrail stands thirty-four and three-sixteenth inches to the top of the rail from the tread, featuring five-sixteenth by two-inch zinc-coated through-bolts with lock washers connecting five balusters. A toe kick is provided at the base of the guardrail. The tube steel stringer is sized per the stair shaft section for riser heights.
DOWN 6" DROP 3' - 6" OFFSET FROM TOP OF STRINGER 6" 2" 9 1/2" DIA. 1 5/8" 2 1/2" 1 1/2" 4 1/2" 1" 3/8" 2" 2" STRINGER 1'-0" T.S. SEE STAIR SHAFT SECTION FOR RISER HEIGHTS 9" 1'-0 1/2" 1'-0 1/2" 1'-0 1/2" 1 1/2" A3 A501 B7 A501 5/16" X 2" ZINC COATED THRU BOLT W/ LOCK WASHER. 5 EA. BALUSTER 1" 7 1/2" R 1 1/2" 2'-8 1/2" 34 3/16" T.O. HANDRAIL FROM TREAD PAINTED 3'-4 1/4" MESH PLATE BAR 1" 2" 4" TOE KICK 3" = 1'-0" A210 E3 BUILDING DETAIL
