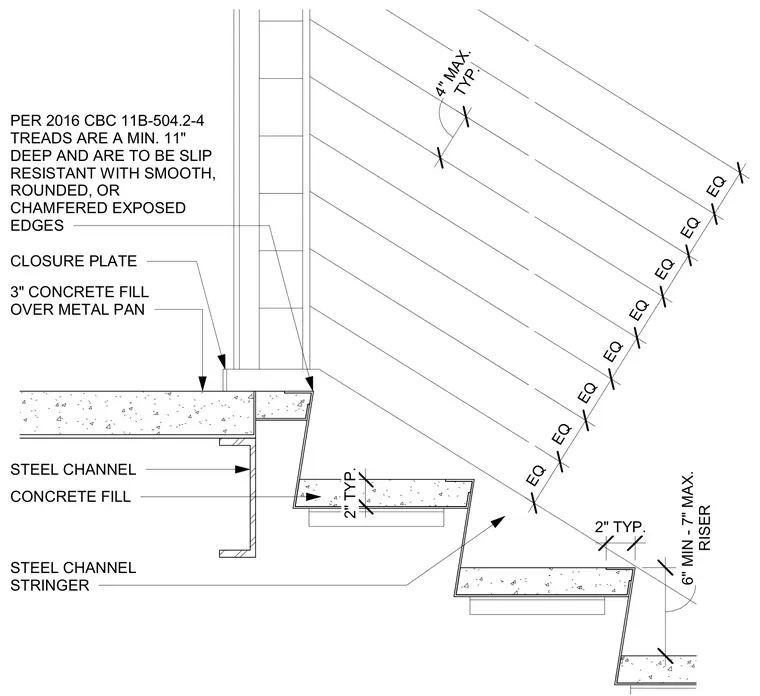

A stair intermediate landing transition with concrete fill over metal pan treads supported by steel channel stringers. Treads feature a minimum depth of eleven inches with slip-resistant surfaces and smooth, rounded, or chamfered exposed edges complying with California Building Code standards. Risers measure between six and seven inches with equal spacing. A closure plate seals the junction between the metal pan stair assembly and the adjacent landing slab, which consists of three inches of concrete fill.
EQ EQ EQ EQ EQ EQ EQ EQ TYP. 4" MAX. 2" TYP. RISER 6" MIN - 7" MAX. 2" TYP. PER 2016 CBC 11B-504.2-4 TREADS ARE A MIN. 11" DEEP AND ARE TO BE SLIP RESISTANT WITH SMOOTH, ROUNDED, OR CHAMFERED EXPOSED EDGES CLOSURE PLATE 3" CONCRETE FILL OVER METAL PAN STEEL CHANNEL CONCRETE FILL STEEL CHANNEL STRINGER
