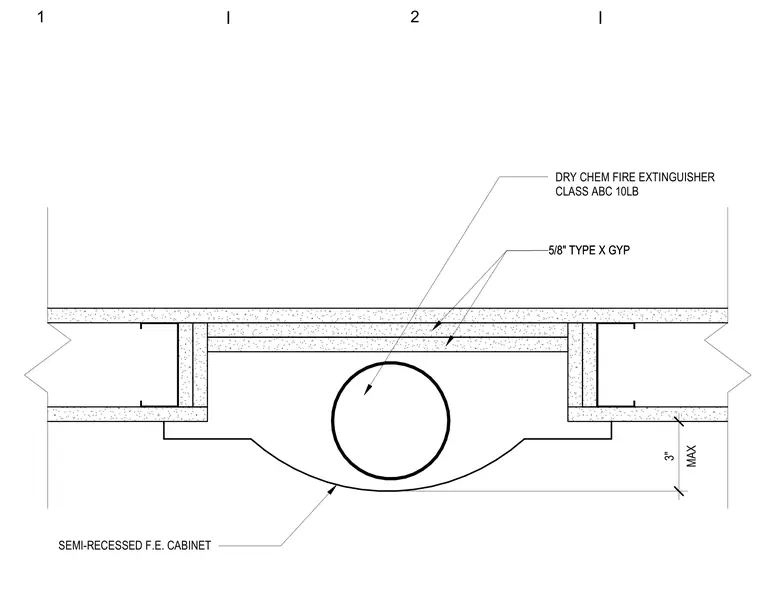

A semi-recessed fire extinguisher cabinet is mounted within a framed wall assembly finished with double layers of five-eighths-inch Type X gypsum board on each side. The cabinet houses a 10-pound Class ABC dry chemical fire extinguisher and projects a maximum of three inches from the finished wall plane.
5/8" TYPE X GYP 5/8" TYPE X GYP MAX 3" DRY CHEM FIRE EXTINGUISHER CLASS ABC 10LB SEMI - RECESSED F.E. CABINET 1 2
