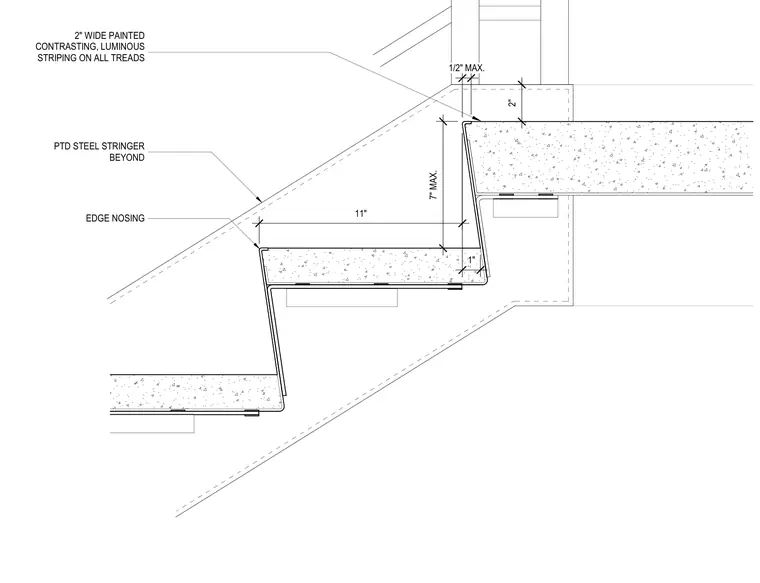

An intermediate stair landing connects to the top of the stair run with specific dimensional clearances for treads and risers. A painted steel stringer is visible beyond, along with an edge nosing. All treads feature a two-inch wide painted contrasting luminous striping. Maximum dimensions include a seven-inch riser and half-inch clearance details.
PTD STEEL STRINGER BEYOND EDGE NOSING 2" WIDE PAINTED CONTRASTING, LUMINOUS STRIPING ON ALL TREADS 7" MAX. 2" 11" 1" 1/2" MAX.
