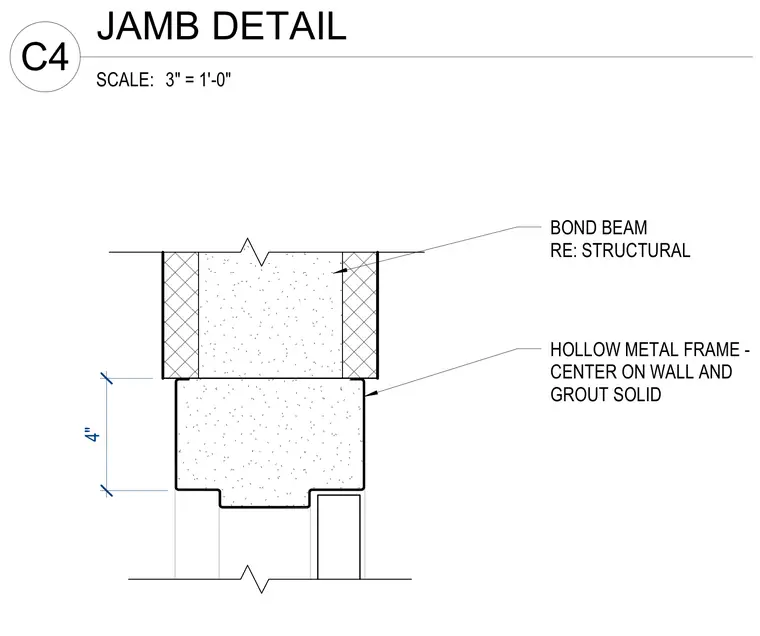

A hollow metal frame is centered on the wall and grouted solid. The surrounding masonry wall incorporates a bond beam detailed per structural drawings. The frame interfaces directly with the grouted concrete masonry unit jamb.
HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID BOND BEAM RE: STRUCTURAL 4" SCALE: 3" = 1'-0" C4 JAMB DETAIL
