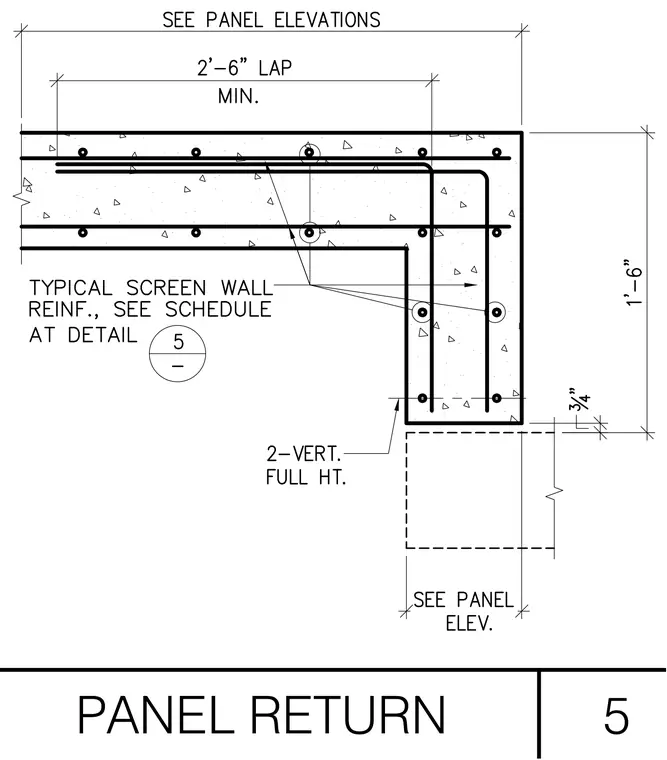

A concrete screen wall corner return assembly incorporates a minimum two-foot six-inch lap splice for reinforcing bars. Two full-height vertical reinforcement bars are placed at the inside corner. Reinforcing sizes are governed by the typical screen wall reinforcement schedule. Dimensions indicate a one-foot six-inch return width with a three-quarter-inch offset.
