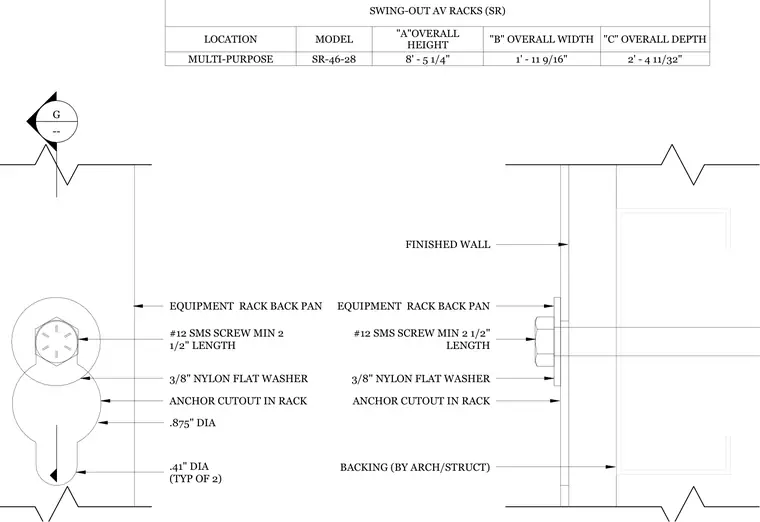

An equipment rack back pan is anchored against a finished wall with backing provided by architecture or structural trades. Fastening uses number twelve sheet metal screws with a minimum two and one-half inch length, paired with three-eighths inch nylon flat washers. The back pan incorporates anchor cutouts measuring eight-hundred seventy-five thousandths of an inch in diameter with two typical forty-one-thousandths-inch diameter holes. A schedule above details swing-out audio-visual rack models including model SR-46-28 with its overall height, width, and depth dimensions.
.875" DIA .41" DIA (TYP OF 2) 3/8" NYLON FLAT WASHER #12 SMS SCREW MIN 2 1/2" LENGTH EQUIPMENT RACK BACK PAN ANCHOR CUTOUT IN RACK 3/8" NYLON FLAT WASHER #12 SMS SCREW MIN 2 1/2" LENGTH EQUIPMENT RACK BACK PAN ANCHOR CUTOUT IN RACK BACKING (BY ARCH/STRUCT) FINISHED WALL G -- SWING-OUT AV RACKS (SR) LOCATION MODEL "A"OVERALL HEIGHT "B" OVERALL WIDTH "C" OVERALL DEPTH MULTI-PURPOSE SR-46-28 8' - 5 1/4" 1' - 11 9/16" 2' - 4 11/32"
