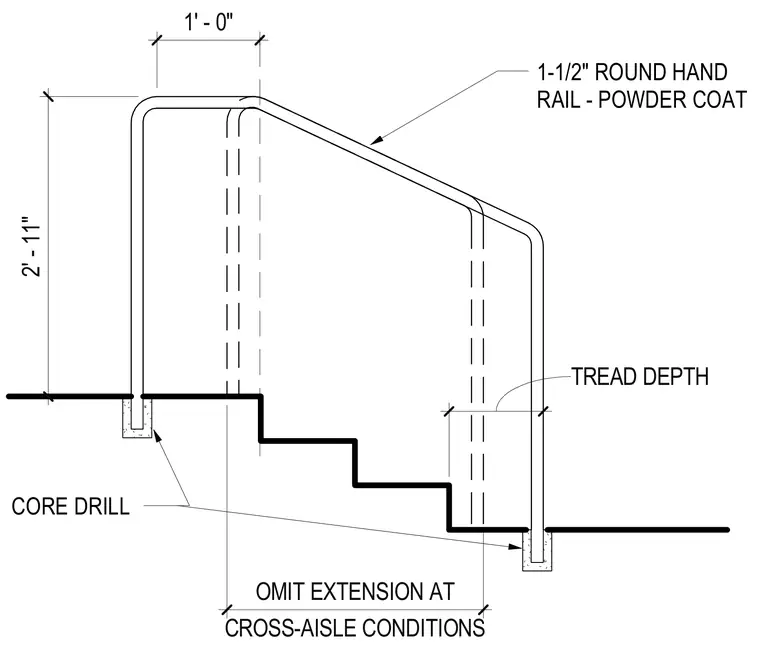

A one-and-one-half-inch round powder-coated handrail mounts to stair treads with core-drilled anchorage pockets at the floor level. The handrail maintains a two-foot eleven-inch height above the tread nose and includes a one-foot horizontal extension which is omitted at cross-aisle conditions.
2' - 11" 1' - 0" 1-1/2" ROUND HAND RAIL - POWDER COAT TREAD DEPTH CORE DRILL CROSS-AISLE CONDITIONS OMIT EXTENSION AT
