An upper wall-mounted cabinet is secured with a continuous french cleat anchored to the wall. The cabinet features a plastic laminate finish applied to all exposed and semi-exposed surfaces over a three-quarter-inch substrate with a self-edge. The interior has a white finish with typical adjustable shelving and brushed aluminum four-inch wire pulls. An under-cabinet light is included where specified with a three-quarter-inch minimum clearance.

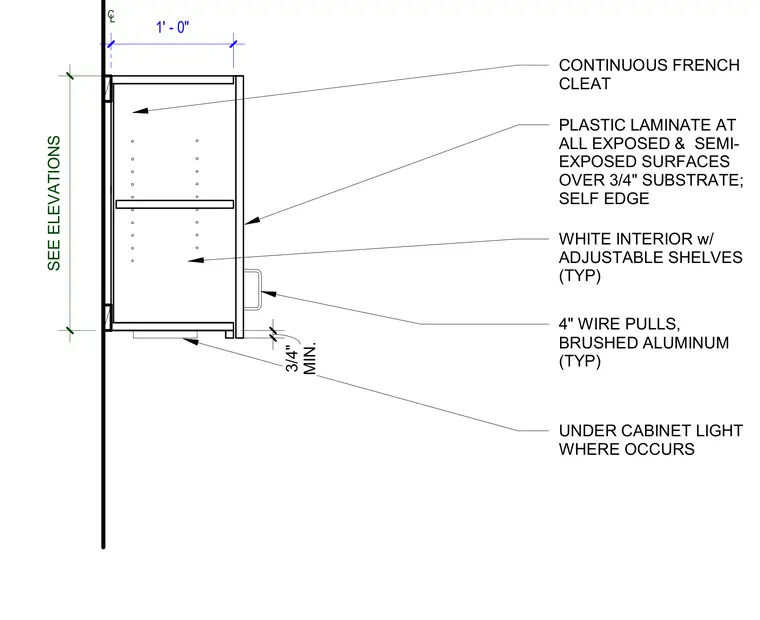

4" WIRE PULLS, BRUSHED ALUMINUM (TYP) PLASTIC LAMINATE AT ALL EXPOSED & SEMI- EXPOSED SURFACES OVER 3/4" SUBSTRATE; SELF EDGE SEE ELEVATIONS WHITE INTERIOR w/ ADJUSTABLE SHELVES (TYP) CONTINUOUS FRENCH CLEAT CL 1' - 0" UNDER CABINET LIGHT WHERE OCCURS MIN. 3/4"
