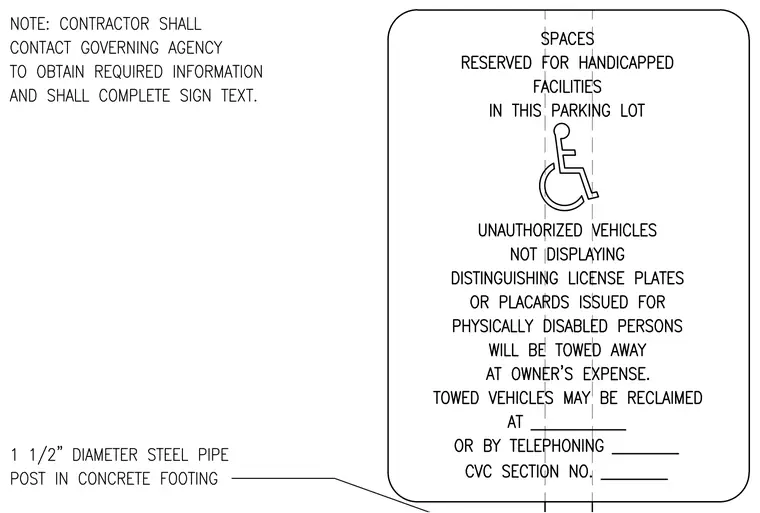

An accessible parking sign is mounted on a 1 1/2-inch diameter steel pipe post supported by a concrete footing. The sign panel displays the international symbol of accessibility and standard statutory text regarding reserved parking and towing regulations for unauthorized vehicles. The contractor must contact the governing agency to obtain required local information and complete the sign text.
