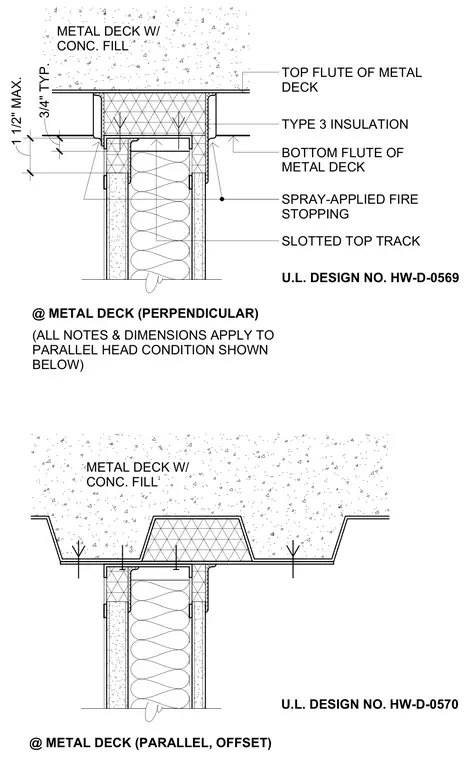

A metal stud partition terminates at a concrete-filled metal deck with firestop systems. The assembly incorporates a slotted top track supporting type 3 insulation and spray-applied fire stopping. The perpendicular and parallel metal deck configurations correspond to Underwriters Laboratories design numbers HW-D-0569 and HW-D-0570 respectively. Clearances include three-quarters of an inch typically with a one-and-a-half inch maximum spacing.
@ METAL DECK (PARALLEL, OFFSET) @ METAL DECK (PERPENDICULAR) (ALL NOTES & DIMENSIONS APPLY TO PARALLEL HEAD CONDITION SHOWN BELOW) U.L. DESIGN NO. HW-D-0570 U.L. DESIGN NO. HW-D-0569 BOTTOM FLUTE OF METAL DECK SPRAY-APPLIED FIRE STOPPING SLOTTED TOP TRACK TOP FLUTE OF METAL DECK TYPE 3 INSULATION METAL DECK W/ CONC. FILL METAL DECK W/ CONC. FILL 3/4" TYP. 1 1/2" MAX.
