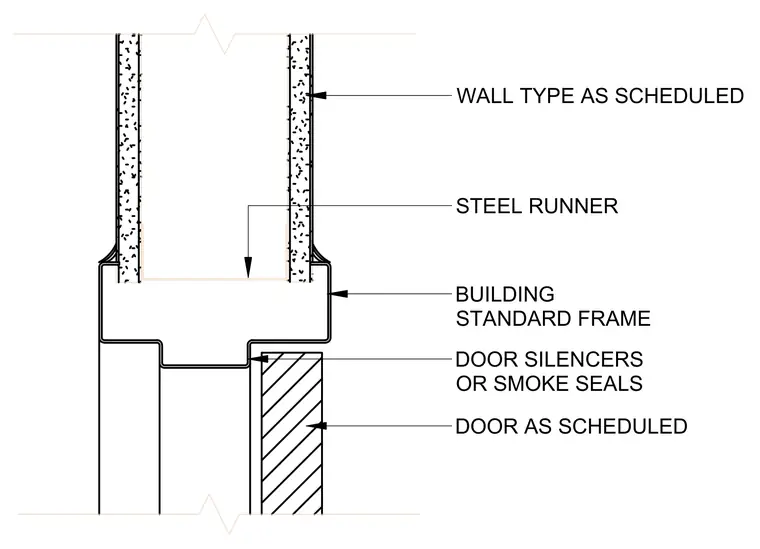

The interior door head assembly features a building standard metal frame tied into a steel runner at the head of the partition wall. The wall type is constructed as scheduled. Door silencers or smoke seals are integrated into the frame stop. The door leaf is installed as scheduled.
WALL TYPE AS SCHEDULED BUILDING STANDARD FRAME STEEL RUNNER DOOR SILENCERS OR SMOKE SEALS DOOR AS SCHEDULED
