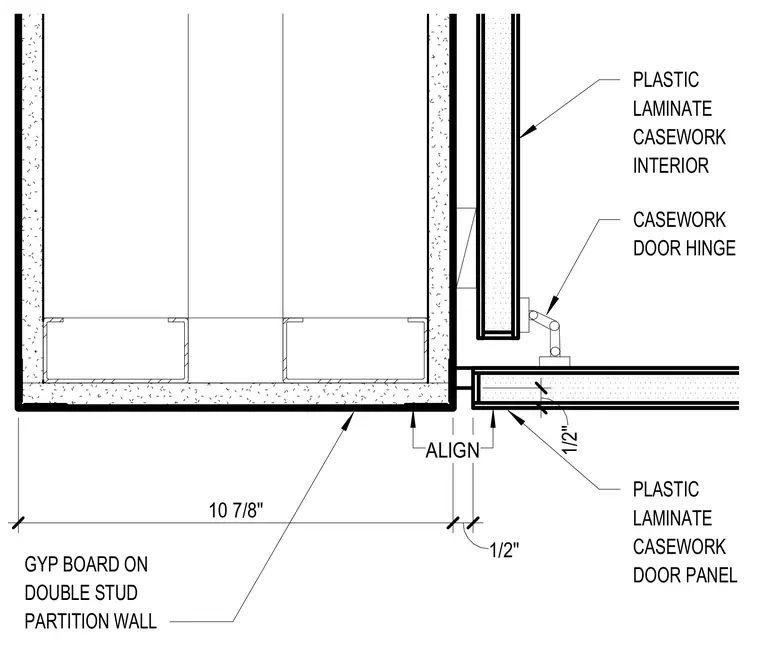

A plastic laminate casework door panel aligns with a double stud gypsum board partition wall, maintaining a half-inch clearance. The casework door is mounted with a concealed casework door hinge. The interior features a plastic laminate casework finish. Dimension strings measure the wall assembly thickness and reveal alignment.
1 0 7 / 8 " 1 / 2 " 1 / 2 " ALIGN C A S E W O R K D O O R H I N G E P L A S T I C L A M I N A T E C A S E W O R K I N T E R I O R P L A S T I C L A M I N A T E C A S E W O R K D O O R P A N E L G Y P B O A R D O N D O U B L E S T U D P A R T I T I O N W A L L
