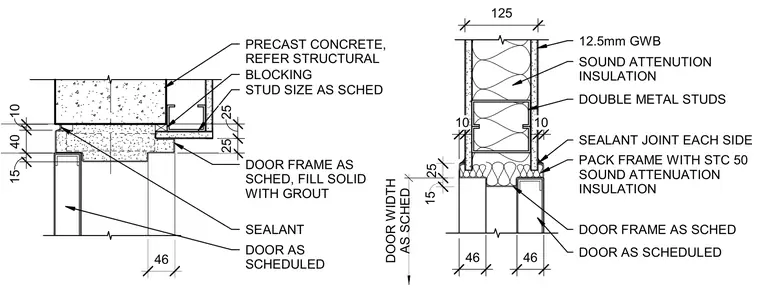

A double metal stud partition meets a precast concrete wall at a door jamb interface. The cavity is filled with sound attenuation insulation, and layers of 12.5mm gypsum wallboard finish the partition faces. The door frame is filled solid with grout and sealed at the perimeter with sealant joints on each side. Wood blocking is provided at the precast concrete connection, and the frame is packed with STC 50 sound attenuation insulation.
DOOR WIDTH AS SCHED 12.5mm GWB SOUND ATTENUTION INSULATION DOUBLE METAL STUDS SEALANT JOINT EACH SIDE DOOR FRAME AS SCHED DOOR AS SCHEDULED 25 15 PACK FRAME WITH STC 50 SOUND ATTENUATION INSULATION 46 46 10 10 125 PRECAST CONCRETE, REFER STRUCTURAL DOOR FRAME AS SCHED, FILL SOLID WITH GROUT DOOR AS SCHEDULED 46 BLOCKING STUD SIZE AS SCHED 15 40 10 SEALANT 25 25
