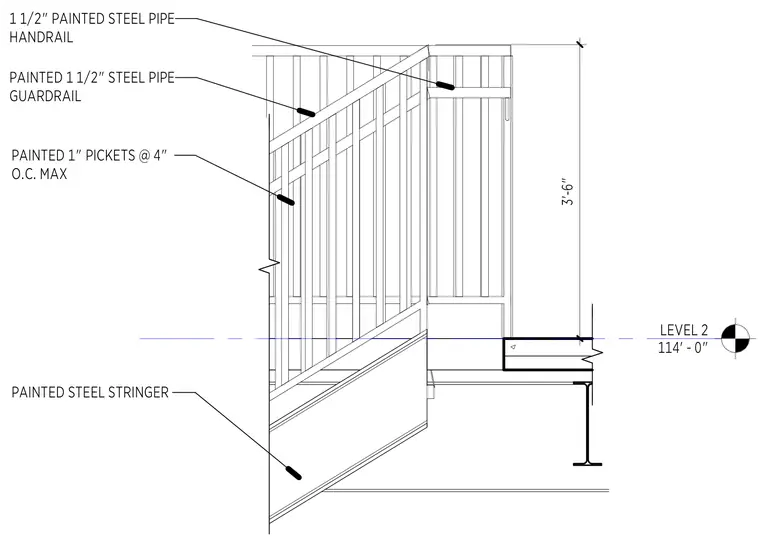

This top landing assembly features a painted steel stringer framing into the floor structure at Level 2, established at an elevation of 114 feet 0 inches. A painted steel pipe handrail and a painted steel pipe guardrail are supported by vertical painted steel pickets spaced at a maximum of four inches on center. The guardrail extends vertically three feet six inches above the finished landing level.
LEVEL 2 114' - 0" 3'-6" PAINTED 1 1/2" STEEL PIPE GUARDRAIL 1 1/2" PAINTED STEEL PIPE HANDRAIL PAINTED 1" PICKETS @ 4" O.C. MAX PAINTED STEEL STRINGER
