Overhead Coiling Door Head at Split-Faced CMU Wall

Materials

Elements

Beams Walls Doors Facades / Cladding Waterproofing / Flashing Insulation Drainage Anchors / Embeds Connections / Plates Reinforcing

About this detail

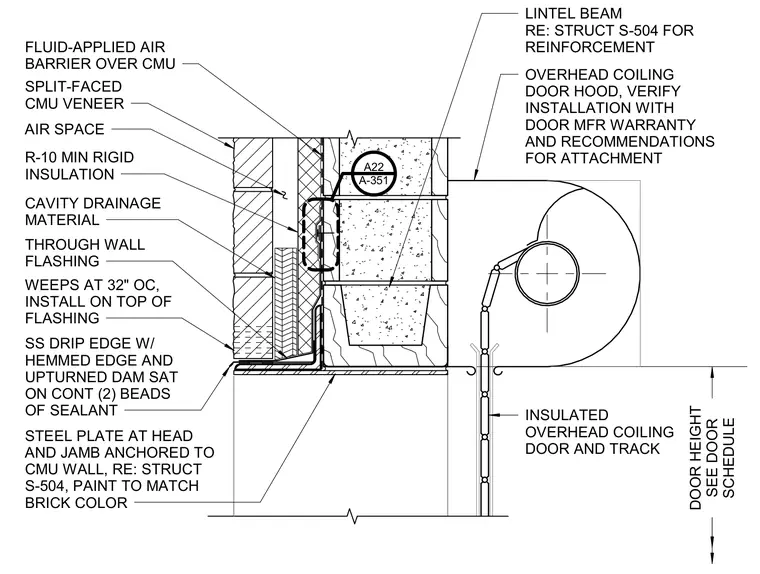

An insulated overhead coiling door and track install beneath a structural steel lintel beam, with its hood secured according to manufacturer recommendations. A steel plate at the head and jamb anchors directly into the concrete masonry unit wall and is painted to match the brick color. The masonry assembly incorporates a fluid-applied air barrier over concrete masonry units, a minimum R-10 rigid insulation layer, an air space, and a split-faced concrete masonry unit veneer. Moisture management is provided by through-wall flashing sitting on continuous dual beads of sealant, paired with a stainless steel drip edge featuring a hemmed edge and upturned dam, alongside cavity drainage material and weeps spaced at thirty-two inches on center.
