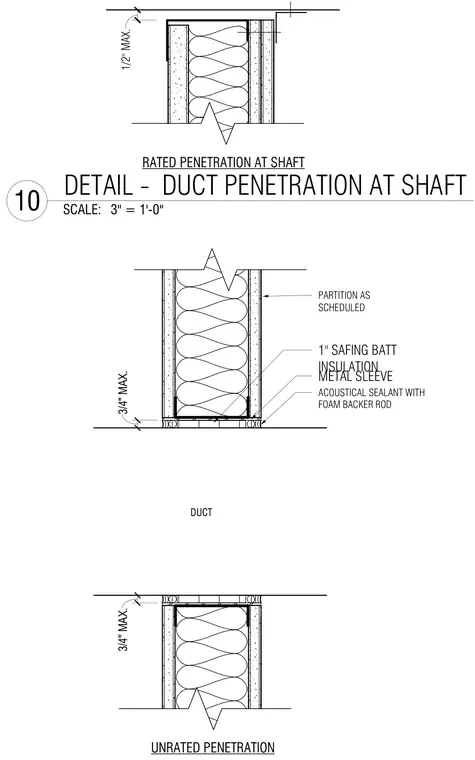

A partition as scheduled receives duct penetrations via a metal sleeve passing through the wall opening, surrounded by one inch of safing batt insulation. Annular spaces are sealed with acoustical sealant and a foam backer rod. Maximum clearances are indicated as one-half inch for rated penetrations and three-quarters of an inch for unrated penetrations.
ACOUSTICAL SEALANT WITH FOAM BACKER ROD PARTITION AS SCHEDULED METAL SLEEVE DUCT 3/4" MAX. 1" SAFING BATT INSULATION 3/4" MAX. UNRATED PENETRATION 1/2" MAX. RATED PENETRATION AT SHAFT SCALE: 3" = 1'-0" 10 DETAIL - DUCT PENETRATION AT SHAFT
