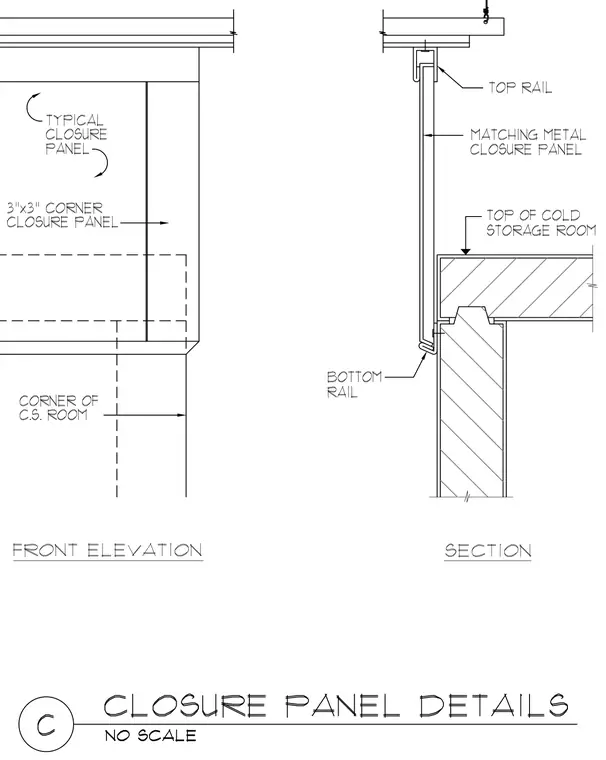

Metal closure panel assemblies at a cold storage room corner featuring a top rail, matching metal closure panel, 3x3 inch corner closure panel, and a bottom rail. The section view details the hanging connection from the structure above and the interface with the top of the cold storage room.
