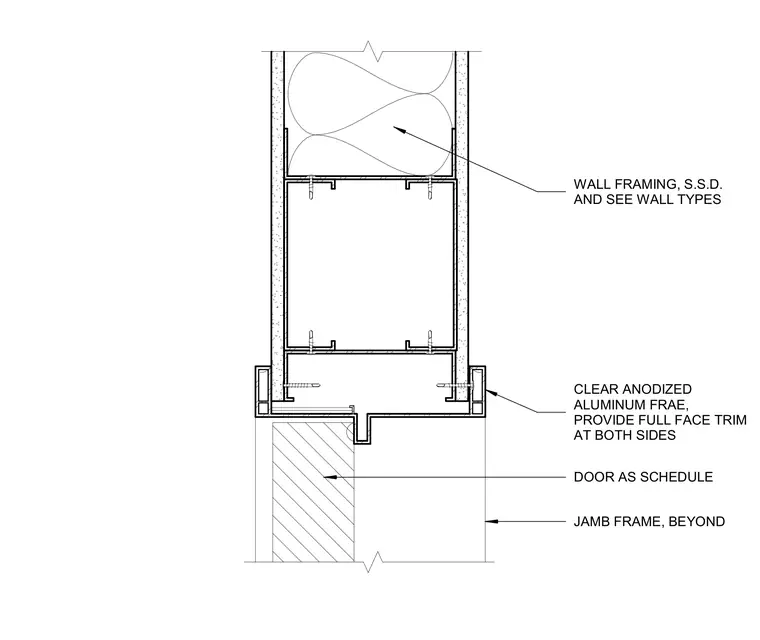

An interior aluminum door frame head detail connecting to surrounding wall framing and gypsum board finishes. The clear anodized aluminum frame features full face trim on both sides and secures to the header framing. Wall framing is sized per structural drawings and coordinated with wall types. The door panel is specified per the door schedule.
WALL FRAMING, S.S.D. AND SEE WALL TYPES CLEAR ANODIZED ALUMINUM FRAE, PROVIDE FULL FACE TRIM AT BOTH SIDES JAMB FRAME, BEYOND DOOR AS SCHEDULE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
