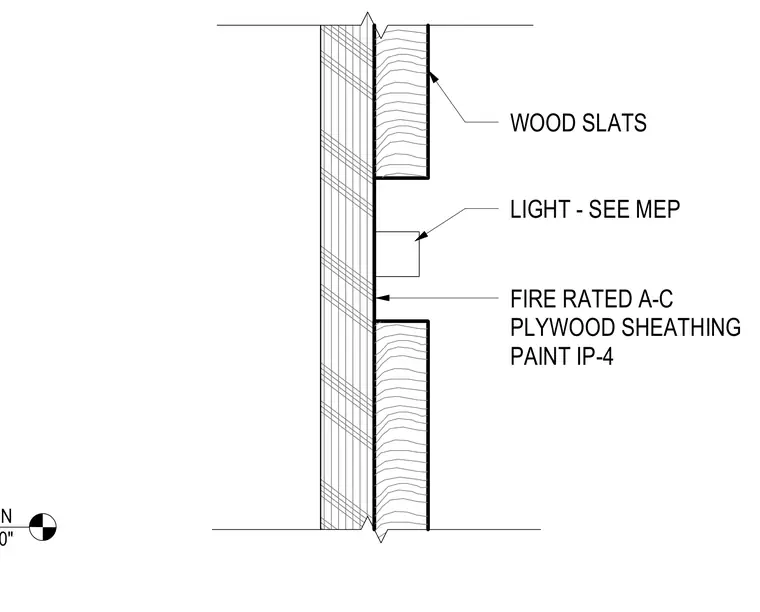

This architectural detail shows a wood slat wall assembly mounted over fire-rated A-C plywood sheathing finished with paint IP-4. An integrated light fixture is recessed between the wood slats, with electrical connections coordinated per MEP drawings.
WOOD SLATS FIRE RATED A-C PLYWOOD SHEATHING PAINT IP-4 LIGHT - SEE MEP 01_MAIN 100' - 0"
