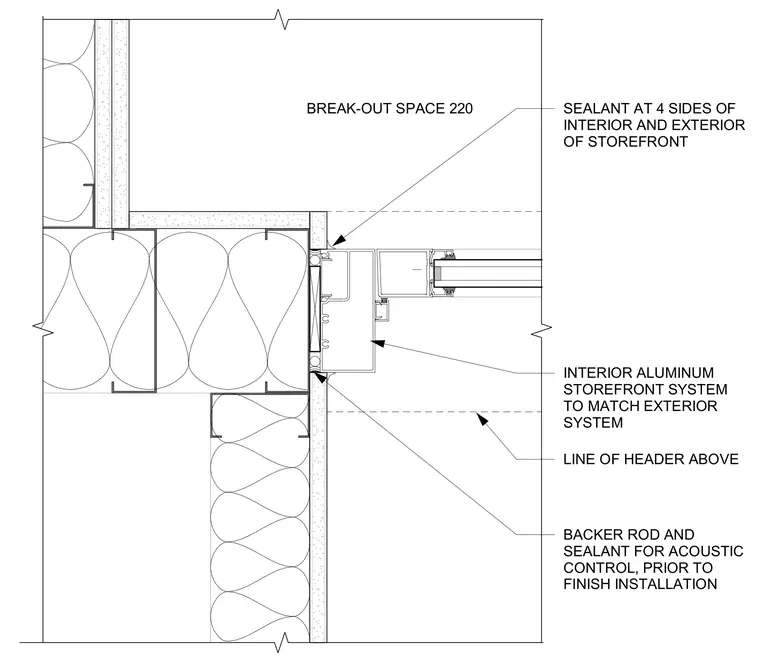

An interior aluminum storefront system is anchored to a metal stud partition wall framing break-out space 220. Sealant is applied at all four sides of the interior and exterior of the storefront assembly. A backer rod and sealant are installed at the jamb for acoustic control prior to finish installation. The line of the header above is indicated relative to the storefront head frame.
INTERIOR ALUMINUM STOREFRONT SYSTEM TO MATCH EXTERIOR SYSTEM SEALANT AT 4 SIDES OF INTERIOR AND EXTERIOR OF STOREFRONT BREAK-OUT SPACE 220 LINE OF HEADER ABOVE BACKER ROD AND SEALANT FOR ACOUSTIC CONTROL, PRIOR TO FINISH INSTALLATION
