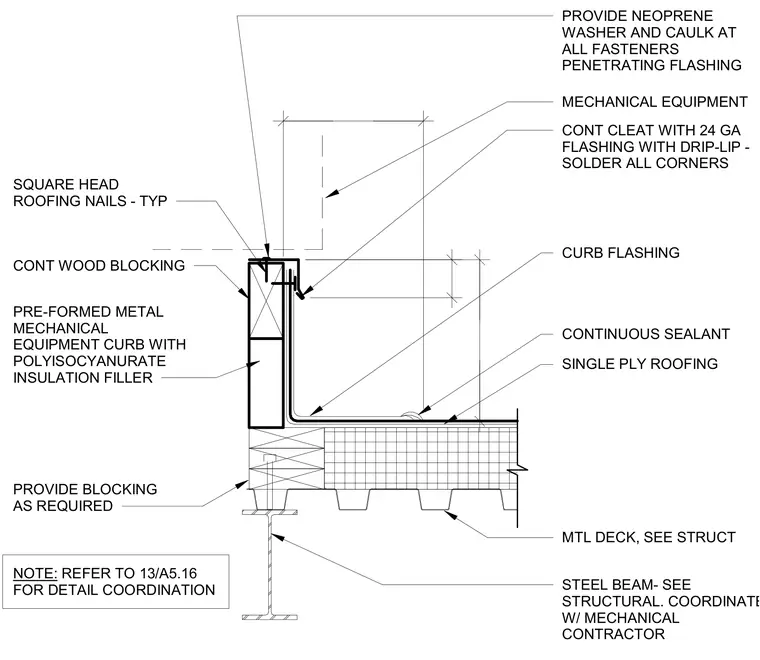

Mechanical equipment sits atop a pre-formed metal curb filled with polyisocyanurate insulation and secured to continuous wood blocking. The wood blocking bears on a metal deck and steel beam roof assembly, with additional blocking provided as required. Curb flashing transitions down to the roof level, where single-ply roofing is sealed with a continuous sealant. A continuous cleat with twenty-four gauge flashing and a drip-lip is soldered at all corners, and neoprene washers and caulking are applied at all fasteners penetrating the flashing. Square head roofing nails are used typically across the wood blocking.
PROVIDE NEOPRENE WASHER AND CAULK AT ALL FASTENERS PENETRATING FLASHING MECHANICAL EQUIPMENT CONT CLEAT WITH 24 GA FLASHING WITH DRIP-LIP - SOLDER ALL CORNERS CURB FLASHING CONTINUOUS SEALANT SINGLE PLY ROOFING STEEL BEAM- SEE STRUCTURAL. COORDINATE W/ MECHANICAL CONTRACTOR MTL DECK, SEE STRUCT SQUARE HEAD ROOFING NAILS - TYP CONT WOOD BLOCKING PRE-FORMED METAL MECHANICAL EQUIPMENT CURB WITH POLYISOCYANURATE INSULATION FILLER PROVIDE BLOCKING AS REQUIRED NOTE: REFER TO 13/A5.16 FOR DETAIL COORDINATION
