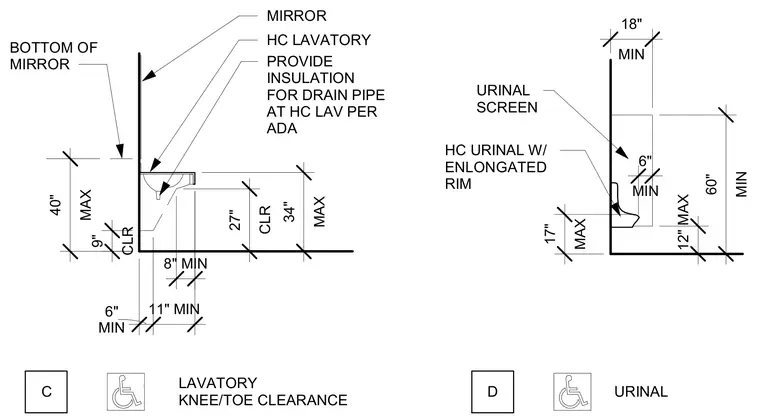

Accessible plumbing fixtures including a handicapped-accessible lavatory with insulated drain pipe and a handicapped-accessible urinal with elongated rim and urinal screen. Mounting heights and clearances are dimensioned including a maximum 34-inch rim height, 27-inch knee clearance, and mirror bottom placement between 18-inch minimum and 40-inch maximum.
URINAL LAVATORY KNEE/TOE CLEARANCE D C URINAL SCREEN HC URINAL W/ ENLONGATED RIM MIRROR HC LAVATORY PROVIDE INSULATION FOR DRAIN PIPE AT HC LAV PER ADA BOTTOM OF MIRROR MIN 18" MAX 17" MIN 60" MAX 40" CLR 9" CLR 27" MAX 34" 8" MIN MIN 6" 11" MIN 12" MAX MIN 6"
