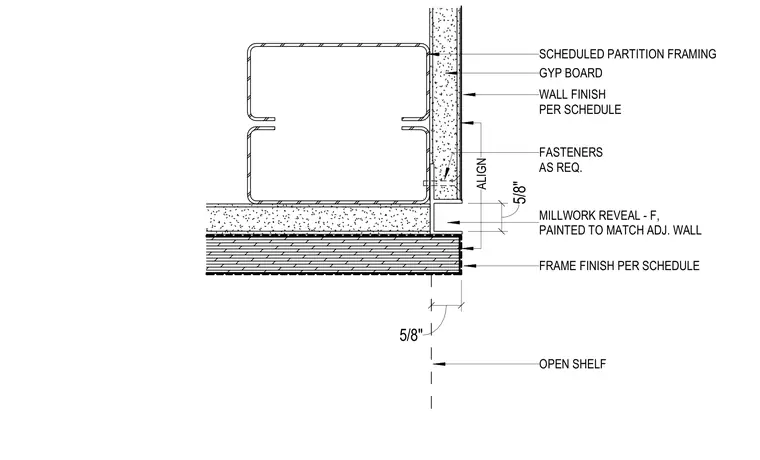

Scheduled partition framing is faced with gypsum board and secured with fasteners as required. A millwork reveal measuring five-eighths of an inch is incorporated and painted to match the adjacent wall. The open shelf aligns with the partition finish per the schedule.
FRAME FINISH PER SCHEDULE SCHEDULED PARTITION FRAMING FASTENERS AS REQ. GYP BOARD MILLWORK REVEAL - F, PAINTED TO MATCH ADJ. WALL WALL FINISH PER SCHEDULE OPEN SHELF 5/8" ALIGN 5/8"
