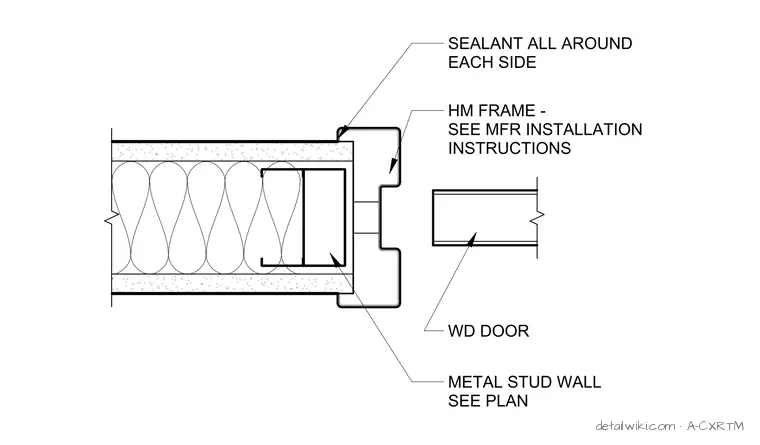

A hollow metal frame strike jamb is installed at the end of a metal stud wall. The metal stud wall is sized per plan and finished with gypsum board. The hollow metal frame is installed per the manufacturer's instructions. Sealant is applied all around each side of the frame where it meets the wall finish. A wood door is positioned to strike against the frame profile.
