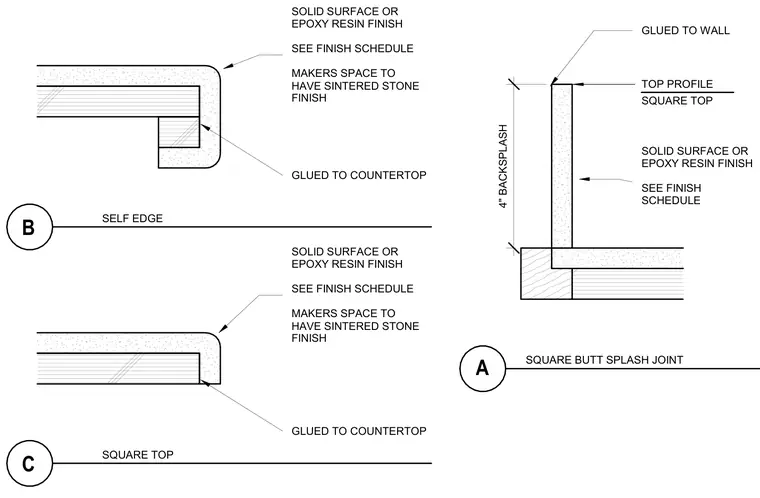

A solid surface or epoxy resin finish is glued to the countertop substrate, with select maker spaces receiving a sintered stone finish per the finish schedule. Edge profiles include a self-edge and a square top configuration. A four-inch vertical backsplash features a square top profile and is glued directly to the adjacent wall at the splash joint.
4" BACKSPLASH TOP PROFILE SQUARE TOP A SQUARE BUTT SPLASH JOINT C SQUARE TOP B SELF EDGE SOLID SURFACE OR EPOXY RESIN FINISH SEE FINISH SCHEDULE MAKERS SPACE TO HAVE SINTERED STONE FINISH SOLID SURFACE OR EPOXY RESIN FINISH SEE FINISH SCHEDULE GLUED TO COUNTERTOP SOLID SURFACE OR EPOXY RESIN FINISH SEE FINISH SCHEDULE MAKERS SPACE TO HAVE SINTERED STONE FINISH GLUED TO COUNTERTOP GLUED TO WALL
