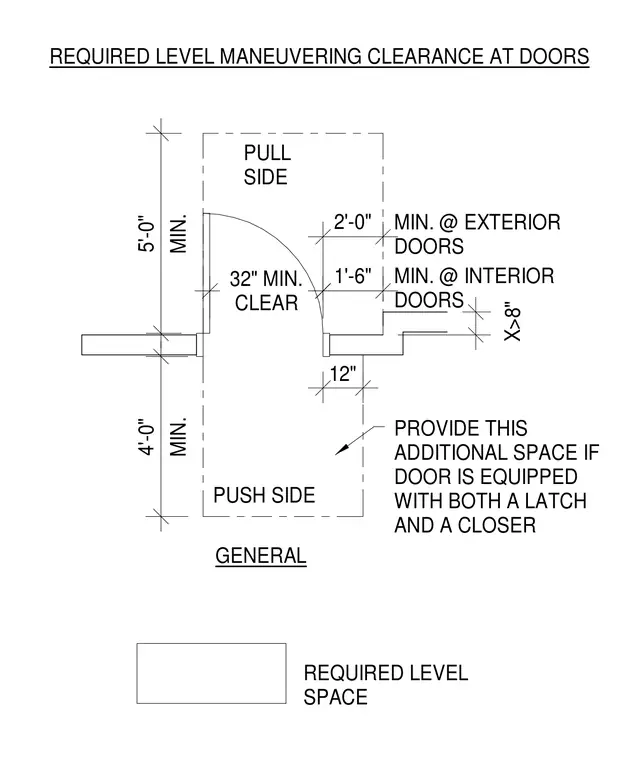

Required level maneuvering clearances at interior and exterior doors must comply with accessibility standards for approach dimensions. The push side requires a minimum 4'-0" dimension plus an additional 12" clearance when the door is equipped with both a latch and a closer. The pull side requires a minimum 5'-0" dimension with specific latch-side clearances of 2'-0" minimum at exterior doors and 1'-6" minimum at interior doors. A clear opening width of 32 inches minimum is maintained.
MIN. @ EXTERIOR DOORS MIN. @ INTERIOR DOORS MIN. 5'-0" 2'-0" 4'-0" MIN. 1'-6" 12" X>8" 32" MIN. CLEAR REQUIRED LEVEL SPACE REQUIRED LEVEL MANEUVERING CLEARANCE AT DOORS PROVIDE THIS ADDITIONAL SPACE IF DOOR IS EQUIPPED WITH BOTH A LATCH AND A CLOSER PUSH SIDE GENERAL PULL SIDE
