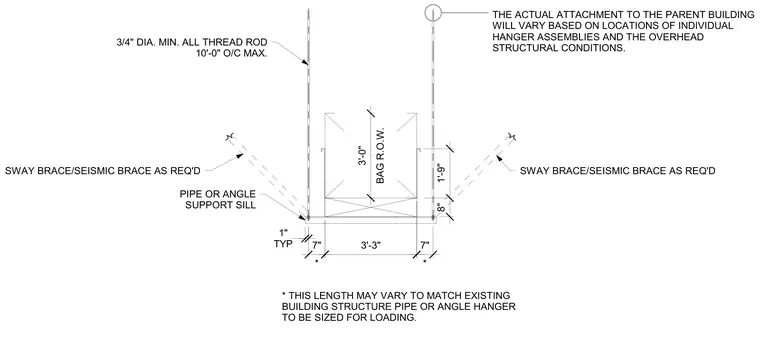

This cross section details a suspended conveyor assembly with a width of three feet three inches and a height of three feet, supported by a pipe or angle support sill. Vertical suspension is provided by three-quarter-inch diameter minimum all-thread rods spaced at a maximum of ten feet on center. Diagonal sway and seismic bracing are included as required, while attachments to the parent building vary based on individual hanger assembly locations and overhead structural conditions.
8" 1'-9" BAG R.O.W. 3'-0" * 7" TYP 1" SWAY BRACE/SEISMIC BRACE AS REQ'D SWAY BRACE/SEISMIC BRACE AS REQ'D THE ACTUAL ATTACHMENT TO THE PARENT BUILDING WILL VARY BASED ON LOCATIONS OF INDIVIDUAL HANGER ASSEMBLIES AND THE OVERHEAD STRUCTURAL CONDITIONS. PIPE OR ANGLE SUPPORT SILL * 7" 3'-3" 3/4" DIA. MIN. ALL THREAD ROD 10'-0" O/C MAX. * THIS LENGTH MAY VARY TO MATCH EXISTING BUILDING STRUCTURE PIPE OR ANGLE HANGER TO BE SIZED FOR LOADING.
