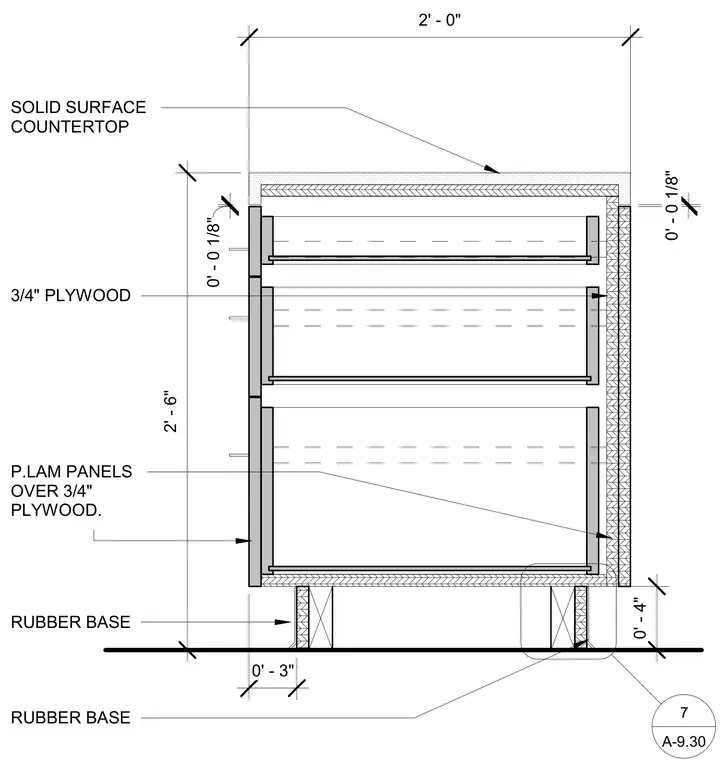

This casework section details a three-drawer base cabinet featuring a solid surface countertop supported by a three-quarter-inch plywood box. The cabinet fronts consist of plastic laminate panels over three-quarter-inch plywood. The base rests on wood blocking finished with a rubber base.
0' - 3" SOLID SURFACE COUNTERTOP 0' - 0 1/8" 3/4" PLYWOOD 0' - 4" P.LAM PANELS OVER 3/4" PLYWOOD. 2' - 6" RUBBER BASE RUBBER BASE 0' - 0 1/8" 2' - 0" A-9.30 7
