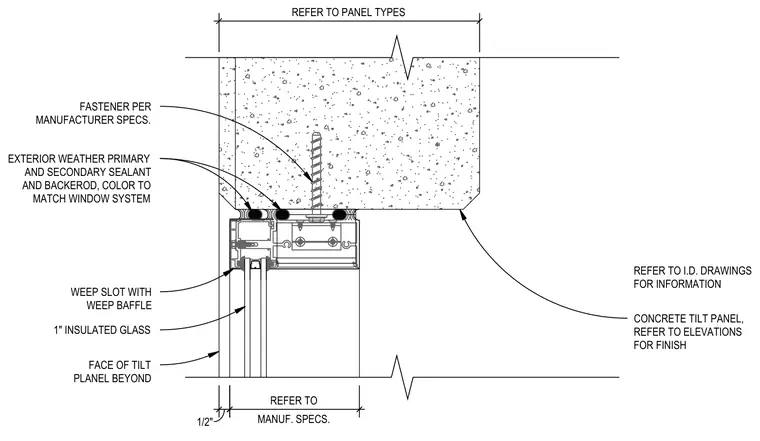

An aluminum window head frame is fastened to the underside of a concrete tilt-up panel using manufacturer-specified fasteners. Primary and secondary exterior weather sealants with backer rods are installed in the joint between the frame and the concrete panel, color-matched to the window system. The window incorporates one-inch insulated glass and a weep slot with a weep baffle for drainage. The face of the tilt-up panel extends beyond the frame, with panel finishes and details coordinated per architectural drawings.
1/2" MANUF. SPECS. REFER TO EXTERIOR WEATHER PRIMARY AND SECONDARY SEALANT AND BACKEROD, COLOR TO MATCH WINDOW SYSTEM 1" INSULATED GLASS FACE OF TILT PLANEL BEYOND FASTENER PER MANUFACTURER SPECS. REFER TO I.D. DRAWINGS FOR INFORMATION CONCRETE TILT PANEL, REFER TO ELEVATIONS FOR FINISH REFER TO PANEL TYPES WEEP SLOT WITH WEEP BAFFLE
