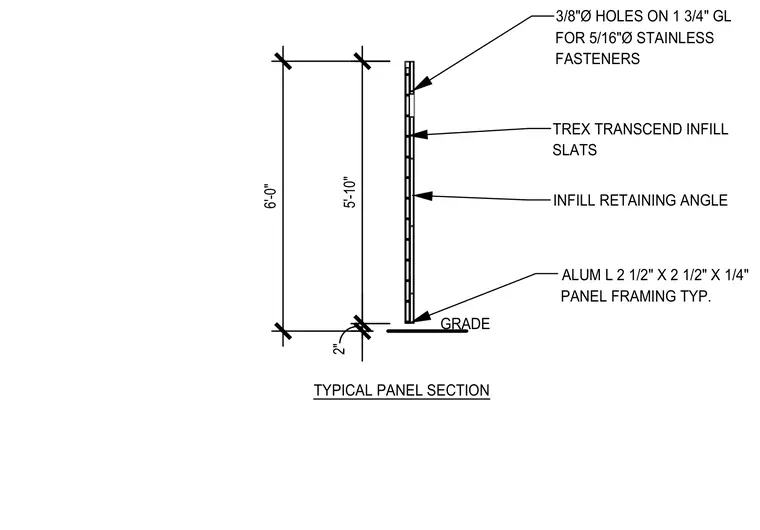

This vertical panel assembly consists of Trex Transcend infill slats secured within an aluminum frame of two-and-a-half by two-and-a-half by one-quarter inch angles. The slats are held in place by an infill retaining angle and fastened using five-sixteenth-inch diameter stainless steel fasteners through three-eighths-inch diameter holes drilled on a one-and-three-quarter-inch gauge line. The entire six-foot tall panel framing is positioned two inches above grade.
GRADE 2" 5'-10" 6'-0" TYPICAL PANEL SECTION ALUM L 2 1/2" X 2 1/2" X 1/4" PANEL FRAMING TYP. INFILL RETAINING ANGLE TREX TRANSCEND INFILL SLATS 3/8"Ø HOLES ON 1 3/4" GL FOR 5/16"Ø STAINLESS FASTENERS
