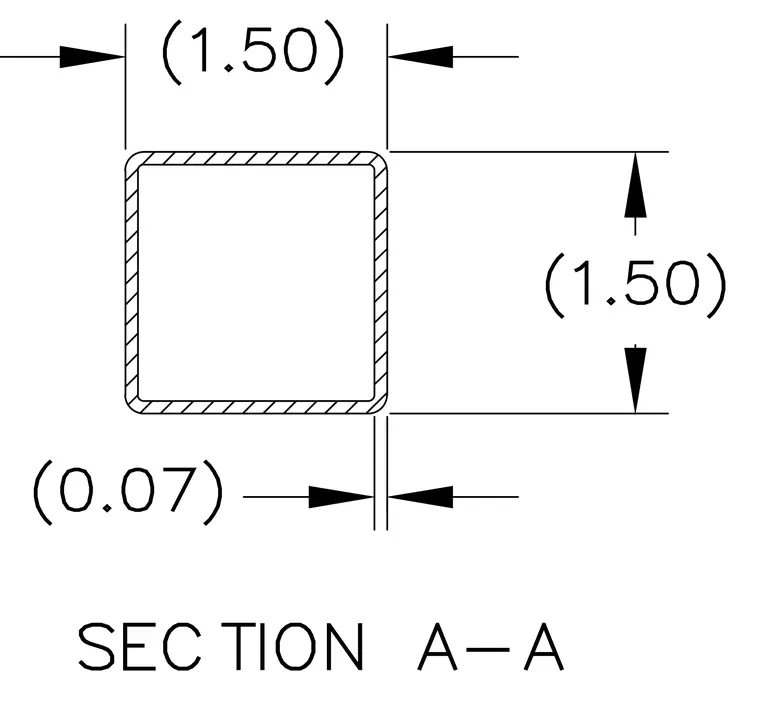

A square hollow structural section profile is detailed with overall width and height dimensions of one and a half inches, along with a fractional clearance measurement of seven-hundredths of an inch.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
