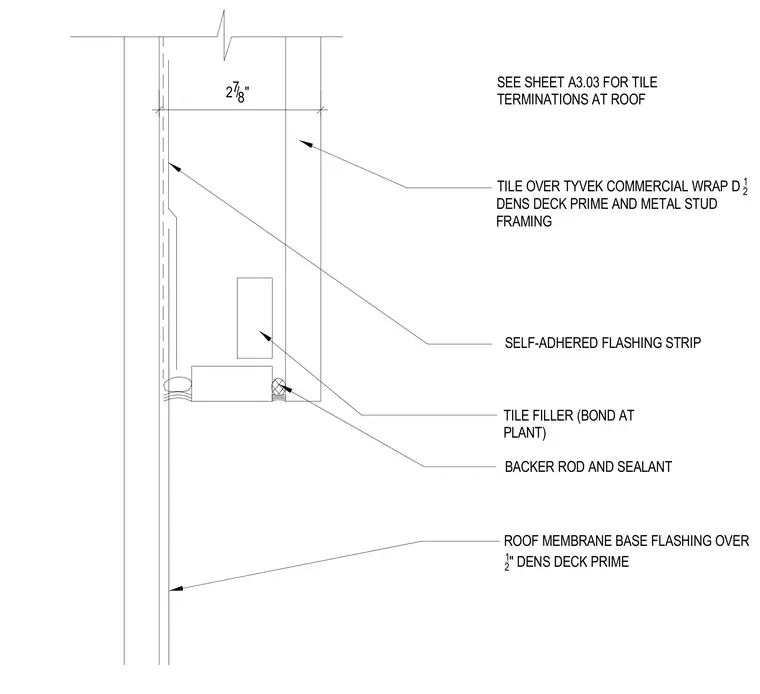

A tile to base flashing transition at a roof edge backed by cold-formed metal stud framing and a one-half-inch Dens Deck Prime substrate. A self-adhered flashing strip provides primary weatherproofing over the substrate, overlaid by exterior tile mounted on Tyvek commercial wrap. A factory-bonded tile filler integrates into the joint assembly along with a two and seven-eighths-inch dimensioned gap sealed by backer rod and joint sealant. A roof membrane base flashing extends vertically over the substrate to complete the waterproof envelope at the roof-wall intersection.
2 7 /8" BACKER ROD AND SEALANT SELF-ADHERED FLASHING STRIP TILE FILLER (BOND AT PLANT) ROOF MEMBRANE BASE FLASHING OVER 1 2 " DENS DECK PRIME SEE SHEET A3.03 FOR TILE TERMINATIONS AT ROOF TILE OVER TYVEK COMMERCIAL WRAP D 1 2 DENS DECK PRIME AND METAL STUD FRAMING
