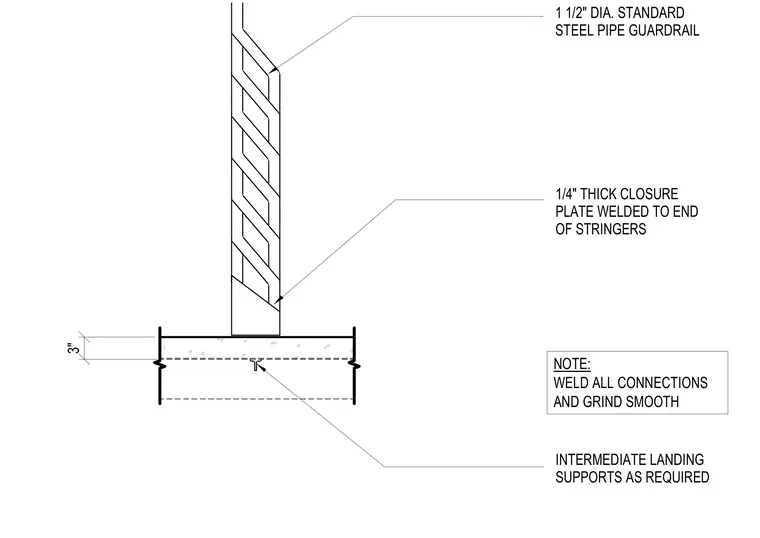

An end view of an intermediate stair landing featuring a one-quarter-inch-thick closure plate welded to the end of the stair stringers. A one-and-one-half-inch-diameter standard steel pipe guardrail mounts directly to the assembly. All connections are welded and ground smooth, with intermediate landing supports provided as required.
3" 1/4" THICK CLOSURE PLATE WELDED TO END OF STRINGERS INTERMEDIATE LANDING SUPPORTS AS REQUIRED NOTE: WELD ALL CONNECTIONS AND GRIND SMOOTH 1 1/2" DIA. STANDARD STEEL PIPE GUARDRAIL
