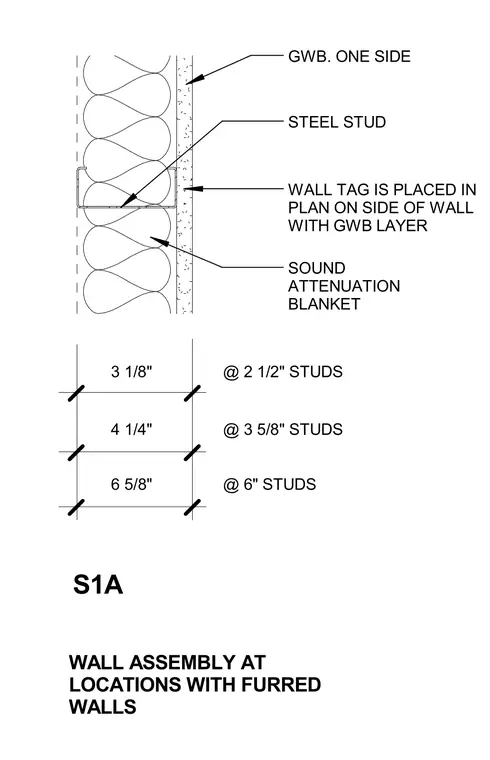

This interior wall assembly consists of cold-formed steel studs finished with a single layer of gypsum wallboard on one side and a sound attenuation blanket installed within the cavity. Dimensional clearances for the furred wall vary by stud depth, providing 3 1/8 inches for 2 1/2-inch studs, 4 1/4 inches for 3 5/8-inch studs, and 6 5/8 inches for 6-inch studs. The wall tag is placed in plan on the side of the wall with the gypsum wallboard layer.
S1A STEEL STUD GWB. ONE SIDE SOUND ATTENUATION BLANKET WALL ASSEMBLY AT LOCATIONS WITH FURRED WALLS 3 1/8" @ 2 1/2" STUDS 4 1/4" @ 3 5/8" STUDS 6 5/8" @ 6" STUDS WALL TAG IS PLACED IN PLAN ON SIDE OF WALL WITH GWB LAYER
