Text on the drawing

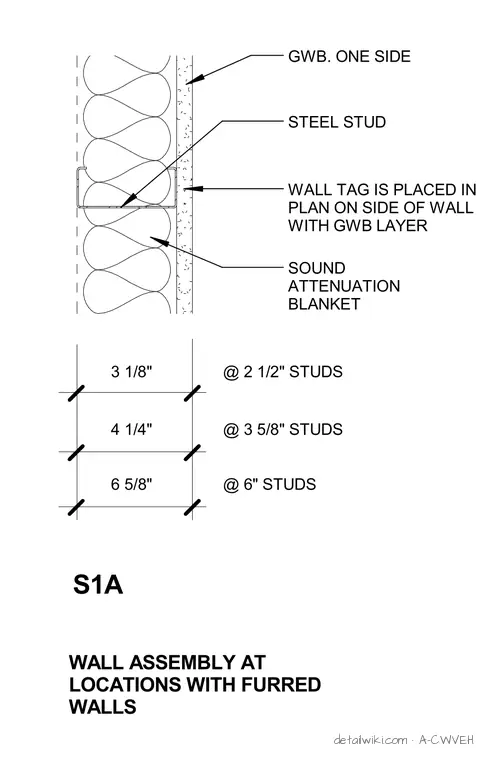

S1A STEEL STUD GWB. ONE SIDE SOUND ATTENUATION BLANKET WALL ASSEMBLY AT LOCATIONS WITH FURRED WALLS 3 1/8" @ 2 1/2" STUDS 4 1/4" @ 3 5/8" STUDS 6 5/8" @ 6" STUDS WALL TAG IS PLACED IN PLAN ON SIDE OF WALL WITH GWB LAYER
