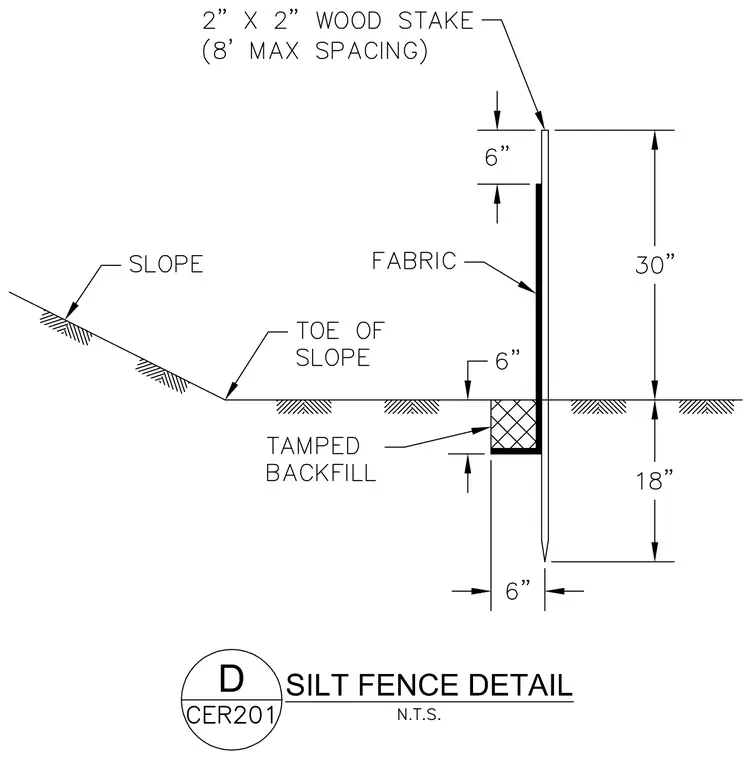

This erosion control assembly consists of a two-inch by two-inch wood stake spaced at eight feet maximum, supporting a geotextile fabric. The fabric extends thirty inches above grade and turns six inches horizontally into an eighteen-inch deep trench with tamped backfill. The stake extends eighteen inches below grade for anchorage adjacent to a sloped embankment.
