Architectural · A-CWQBB

Accessible Parking Sign and Handrail Details

Materials

Concrete Steel

Elements

Columns Walls Stairs Ramps Railings / Guards Floors / Slabs Site / Paving

Connections

HSS Connection

About this detail

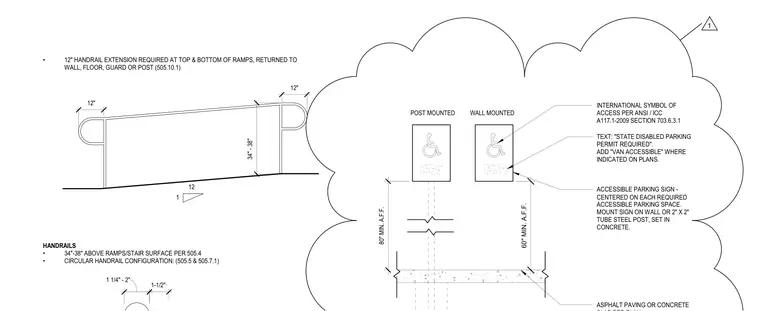

Accessible parking signs are centered on each required parking space and mounted either on a wall or on a two-by-two-inch tube steel post set in concrete. The sign features the international symbol of access per ANSI and ICC standards along with required text regarding state permits and van accessibility. Mounting heights are specified as a minimum of sixty inches above the finished floor for wall-mounted installations and eighty inches for post-mounted signs over asphalt paving or concrete. Associated handrail details show circular gripping configurations between one and one-quarter and two inches in diameter positioned thirty-four to thirty-eight inches above ramp and stair surfaces. Twelve-inch handrail extensions are required at the top and bottom of ramps, returned to the wall, floor, guard, or post.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
